ATMEGA328P-PU

IC MCU 8BIT 32KB FLASH 28DIP

Introduction

The ATmega48A/PA/88A/PA/168A/PA/328/P is a low power, CMOS 8-bit microcontrollers based on the AVR® enhanced RISC architecture. By executing instructions in a single clock cycle, the devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz, allowing the sys tem designer to optimize power consumption versus processing speed.

Features

lHigh Performance, Low Power AVR® 8-Bit Microcontroller Family

lAdvanced RISC Architecture

131 Powerful Instructions – Most Single Clock Cycle Execution

32 x 8 General Purpose Working Registers

Fully Static Operation

Up to 20 MIPS Throughput at 20MHz

On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory Segments

4/8/16/32KBytes of In-System Self-Programmable Flash program memory

256/512/512/1KBytes EEPROM

512/1K/1K/2KBytes Internal SRAM

Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

Data retention: 20 years at 85°C/100 years at 25°C

Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

Programming Lock for Software Security

QTouch® library support

Capacitive touch buttons, sliders and wheels

QTouch and QMatrix™ acquisition

Up to 64 sense channels

Peripheral Features

Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

Real Time Counter with Separate Oscillator

Six PWM Channels

8-channel 10-bit ADC in TQFP and VQFN package

Temperature Measurement

6-channel 10-bit ADC in SPDIP Package

Temperature Measurement

Programmable Serial USART

Master/Slave SPI Serial Interface

Byte-oriented 2-wire Serial Interface (Philips I2C compatible)

Programmable Watchdog Timer with Separate On-chip Oscillator

On-chip Analog Comparator

Interrupt and Wake-up on Pin Change

Special Microcontroller Features

Power-on Reset and Programmable Brown-out Detection

Internal Calibrated Oscillator

External and Internal Interrupt Sources

Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby

I/O and Packages

23 Programmable I/O Lines

28-pin SPDIP, 32-lead TQFP, 28-pad VQFN and 32-pad VQFN

Operating Voltage:1.8 - 5.5V

Temperature Range:-40°C to 85°C

Speed Grade: 0 - 4MHz@1.8 - 5.5V, 0 - 10MHz@2.7 - 5.5.V, 0 - 20MHz @ 4.5 - 5.5V

Power Consumption at 1MHz, 1.8V, 25°C

Active Mode: 0.2mA

Power-down Mode: 0.1µA

Power-save Mode: 0.75µA (Including 32kHz RTC)

1. Pin Configurations

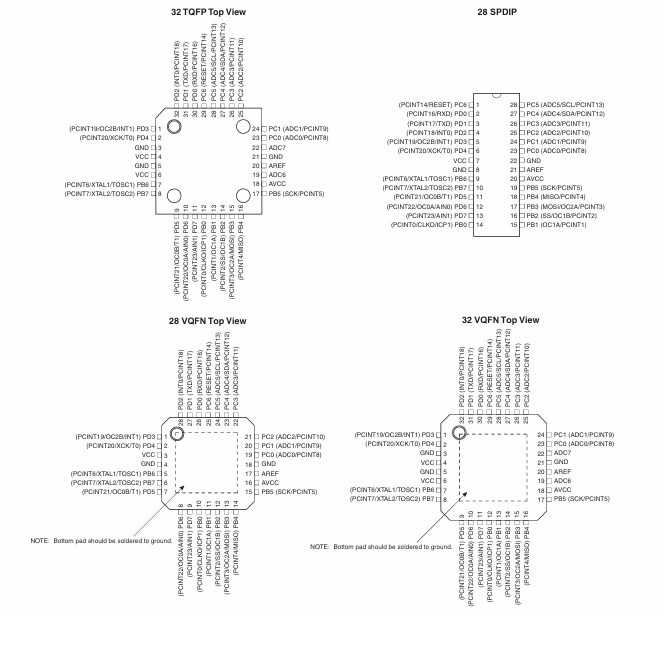

Figure 1-1. Pinout ATmega48A/PA/88A/PA/168A/PA/328/P

2. ATmega48A/PA/88A/PA/168A/PA/328/P Overview

The ATmega48A/PA/88A/PA/168A/PA/328/P is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega48A/PA/88A/PA/168A/PA/328/P achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

2.1 Block Diagram

Figure 2-1. Block Diagram

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATmega48A/PA/88A/PA/168A/PA/328/P provides the following features: 4K/8Kbytes of In-System Programmable Flash with Read-While-Write capabilities, 256/512/512/1Kbytes EEPROM, 512/1K/1K/2Kbytes SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, a byte-oriented 2-wire Serial Interface, an SPI serial port, a 6-channel 10-bit ADC (8 channels in TQFP and VQFN packages), a programmable Watchdog Timer with internal Oscillator, and five software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, USART, 2-wire Serial Interface, SPI port, and interrupt system to continue functioning. The Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next interrupt or hardware reset. In Power-save mode, the asynchronous timer continues to run, allowing the user to maintain a timer base while the rest of the device is sleeping. The ADC Noise Reduction mode stops the CPU and all I/O modules except asynchronous timer and ADC, to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low power consumption.

Microchip offers the QTouch library for embedding capacitive touch buttons, sliders and wheels functionality into AVR® microcontrollers. The patented charge-transfer signal acquisition offers robust sensing and includes fully debounced reporting of touch keys and includes Adjacent Key Suppression™ (AKS™) technology for unambiguous detection of key events. The easy-to-use QTouch Suite toolchain allows you to explore, develop and debug your own touch applications.

The device is manufactured using Microchip’s high density non-volatile memory technology. The On-chip ISP Flash allows the program memory to be reprogrammed In-System through an SPI serial interface, by a conventional non-volatile memory programmer, or by an On-chip Boot program running on the AVR core. The Boot program can use any interface to download the application program in the Application Flash memory. Software in the Boot Flash section will continue to run while the Application Flash section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the ATmega48A/PA/88A/PA/168A/PA/328/P is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.

The ATmega48A/PA/88A/PA/168A/PA/328/P AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.
