LIS3DHTR

ACCEL 2-16G I2C/SPI 16LGA

Features

· Wide supply voltage, 1.71 V to 3.6 V ·

· Independent IO supply (1.8 V) and supply voltage compatible ·

· Ultra-low-power mode consumption down to 2 μA · ±

·±2g/±4g/±8g/±16g dynamically selectable full scale ·

·I2C/SPI digital output interface ·

·16-bit data output ·

·2 independent programmable interrupt generators for free-fall and motion detection ·

·6D/4D orientation detection ·

·Free-fall detection ·

·Motion detection ·

·Embedded temperature sensor ·

·Embedded self-test ·

·Embedded 32 levels of 16-bit data output FIFO ·

·10000 g high shock survivability ·

·ECOPACK®, RoHS and “Green” compliant

Applications

·Motion activated functions ·

·Free-fall detection ·

·Click/double-click recognition ·

·Intelligent power saving for handheld devices ·

·Pedometers

·Display orientation ·

·Gaming and virtual reality input devices ·

·Impact recognition and logging ·

·Vibration monitoring and compensation

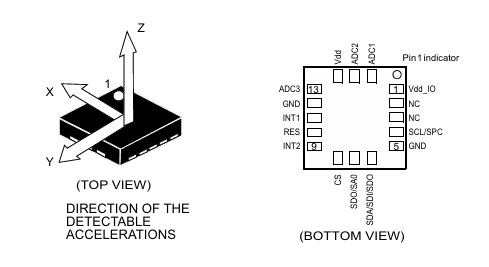

Description

The LIS3DH is an ultra-low-power high performance three-axis linear accelerometer belonging to the “nano” family, with digital I2C/SPI serial interface standard output. The device features ultra-low-power operational modes that allow advanced power saving and smart embedded functions.

The LIS3DH has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals using two independent inertial wake-up/free-fall events as well as by the position of the device itself.

Thresholds and timing of interrupt generators are programmable by the end user on the fly. The LIS3DH has an integrated 32-level first-in, first out (FIFO) buffer allowing the user to store data in order to limit intervention by the host processor. The LIS3DH is available in small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
