TPA3116D2DADR

IC AMP CLASS D STER 50W 32HTSSOP

1 Features

• Supports Multiple Output Configurations

– 2×50WIntoa4-Ω BTL Load at 21 V (TPA3116D2)

– 2×30WIntoa8-Ω BTL Load at 24 V (TPA3118D2)

– 2×15WIntoa8-Ω BTL Load at 15 V (TPA3130D2)

• WideVoltage Range: 4.5 V to 26 V

• Efficient Class-D Operation

– >90%Power Efficiency Combined With Low Idle Loss Greatly Reduces Heat Sink Size

– Advanced Modulation Schemes

• Multiple Switching Frequencies

– AMAvoidance

– Master and Slave Synchronization

– Upto1.2-MHz Switching Frequency

• Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements

• Programmable Power Limit

• Differential and Single-Ended Inputs

• Stereo and Mono Mode With Single-Filter Mono Configuration

• Single Power Supply Reduces Component Count

• Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DC Detect, and Short Circuit With Error Reporting

• Thermally Enhanced Packages

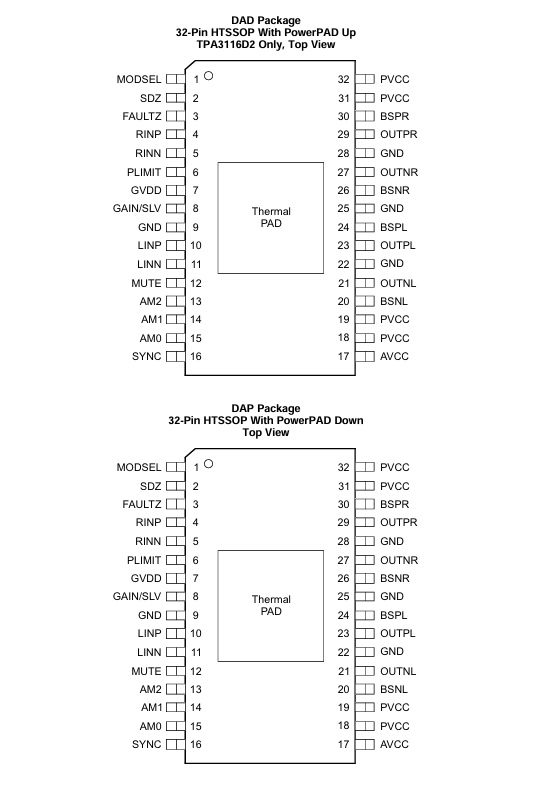

– DAD(32-Pin HTSSOP Pad Up)

– DAP(32-Pin HTSSOP Pad Down)

•–40°C to 85°C Ambient Temperature Range

2 Applications

• Mini-Micro Component, Speaker Bar, Docks

• After-Market Automotive

• CRTTV

• Consumer Audio Applications

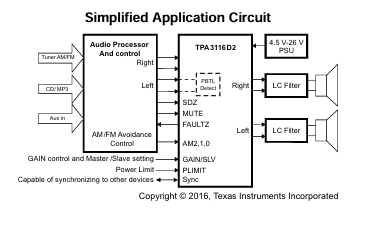

3 Description

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100 W / 2 Ω in mono. The high efficiency of the TPA3130D2 allows it to do 2 × 15 W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2 × 30 W / 8 Ω without heat sink on a dual layer PCB. If even higher power is needed the TPA3116D2 does 2 × 50 W / 4 Ω with a small heat sink attached to its top side PowerPAD. All three devices share the same footprint enabling a single PCB to be used across different power levels.

The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences; this is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices.

The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.
