SN74LV4051ATDWRQ1

汽车类 5V、8:1、单通道、通用模拟多路复用器

1 Features

• Qualified for Automotive Applications 1

• AEC-Q100 Qualified With the Following Results

– Device Temperature Grade 1:–40°C to +125°C Ambient Operating Temperature Range

– Device HBM ESD Classification Level 2

– Device CDM ESD Classification Level C4B

• 2-Vto 5.5-V VCC Operation

• Supports Mixed-Mode Voltage Operation on All Ports

• High On-Off Output-Voltage Ratio

• LowCrosstalk Between Switches

• Individual Switch Controls

• Extremely Low Input Current

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

2 Applications

• Automotive Infotainment and Cluster

• Telematics, eCall

3 Description

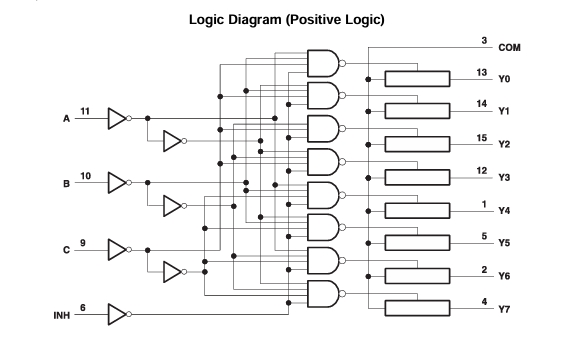

This 8-channel CMOS analog multiplexer and demultiplexer is designed for 2-V to 5.5-V VCC operation.

The SN74LV4051A handles analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in eitherdirection.

Applications include signal gating,chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
