ADS7043EVM-PDK

EVAL BOARD FOR ADS7043

1 Features

• Industry's First SAR ADC with Nanowatt Power 1 Consumption:

– 243µWat1MSPSwith 1.8-V AVDD

– 780µWat1MSPSwith 3-V AVDD

– 78µWat100kSPS with 3-V AVDD

– Less than 1 µW at 1 kSPS with 3-V AVDD

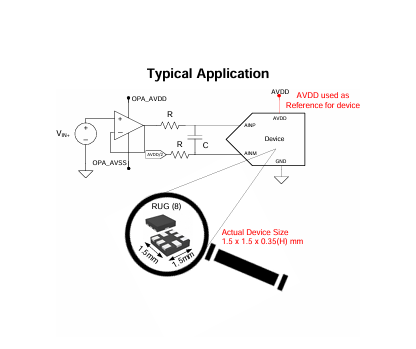

• Industry's Smallest SAR ADC:– X2QFN-8 Package with 2.25-mm2 Footprint

• 1-MSPS Throughput with Zero Data Latency

• WideOperating Range:– AVDD:1.65 V to 3.6 V– DVDD:1.65 V to 3.6 V (Independent of AVDD)– Temperature Range:–40°C to 125°C

• Excellent Performance:– 12-Bit Resolution with NMC– ±1-LSB (Max) DNL and INL– 70-dB SNR with 3-V AVDD––80-dB THD with 3-V AVDD

• Unipolar, Pseudo-Differential Input Range:–AVDD / 2 to AVDD / 2

• Integrated Offset Calibration

1.5mm

• SPI™-Compatible Serial Interface: 16 MHz

• JESD8-7A Compliant Digital I/O

2 Applications

• Low-Power Data Acquisition

• Battery-Powered Handheld Equipment

• Level Sensors

• Ultrasonic Flow Meters

• Motor Controls

• Wearable Fitness

• Portable Medical Equipment

• Hard Drives

• Glucose Meters

3 Description

The ADS7043 is a 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (±0.825 V to ±1.8 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The device complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V).

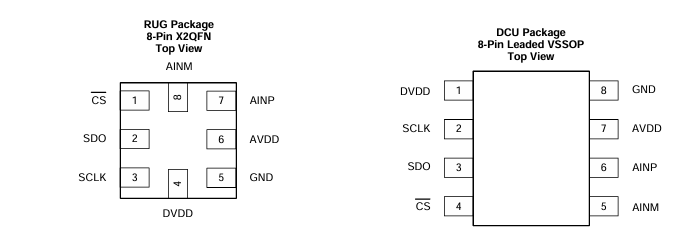

The device is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from–40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications.
