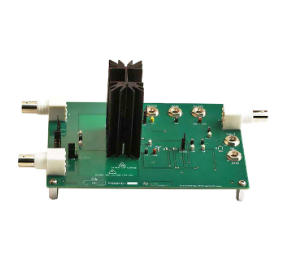

OPA547EVM

EVALUATION MODULE

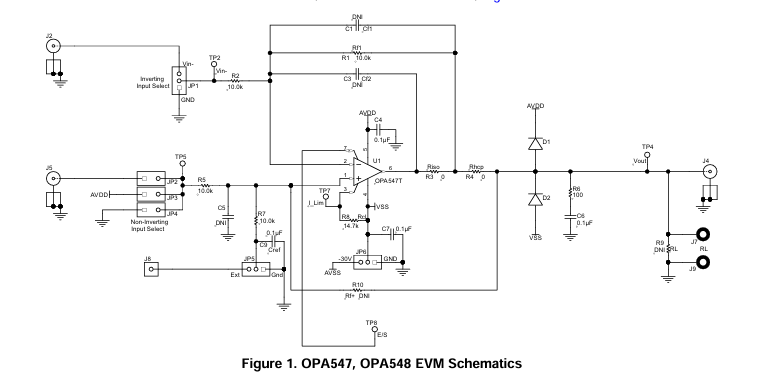

This user’s guide describes the characteristics, operation and use of the OPA547 and OPA548 evaluation module (EVM). This guide discusses how to set up and configure the board hardware, and describes various applications using the evaluation module. Throughout this document the terms evaluation board, evaluation module, and EVM are synonymous with the OPA547EVM, OPA548EVM. This document also includes an electrical schematic, a printed circuit board (PCB) layout drawing, and a parts list for the EVM.

2 SchematicsandLayout
