THS4303EVM

EVAL MODULE FOR THS4303

FEATURES

• Fixed Closed-Loop Gain Amplifier – 10 V/V (20 dB)

• Wide Bandwidth: 1.8 GHz

• High Slew Rate: 5500 V/µs

• Low Total Input Referred Noise: 2.5 nV/√Hz

• Low Distortion

– HD2: –65 dBc at 70 MHz

– HD3: –76 dBc at 70 MHz

– IMD3: –85 dBc at 100 MHz

– OIP3: 34 dBm at 100 MHz

– IMD3:-70 dBc at 300 MHz

– OIP3: 27 dBm at 300 MHz

• High Output Drive: ±180 mA

• Power Supply Voltage: 3 V or 5 V

APPLICATIONS

• Wideband Signal Processing

• Wireless Transceivers

• IF Amplifier

• ADC Preamplifier

• DAC Output Buffers

• Test, Measurement, and Instrumentation

• Medical and Industrial Imaging

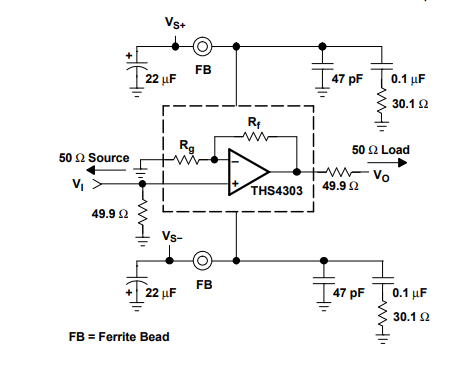

DESCRIPTION

The THS4303 devioe is a wideband, fixed-gain ampli-fier that offers high bandwidth, high slew rate, lownoise,and low distortion. This combinaton of spe cifi-catons enables analogdesigners to transcend cur-rent performance limitations and process analog sig-nals at much higher speeds than previously possiblewith closed-oop,complementary amplifier designs.The devices are offered in a 16-pin leadless packageand incorporate a power-dow mode for quiescentpower savings.
